desc.plotting.plot_boundary

desc.plotting.plot_boundary(eq, phi=None, plot_axis=True, ax=None, return_data=False, **kwargs)Source

Plot stellarator boundary at multiple toroidal coordinates.

Parameters:

  • eq (Equilibrium, Surface) – Object from which to plot.

  • phi (float, int or array-like or None) – Values of phi to plot boundary surface at. If an integer, plot that many contours linearly spaced in [0,2pi). Default is 1 contour for axisymmetric equilibria or 4 for non-axisymmetry.

  • plot_axis (bool) – Whether to plot the magnetic axis locations. Default is True.

  • ax (matplotlib AxesSubplot, optional) – Axis to plot on.

  • return_data (bool) – if True, return the data plotted as well as fig,ax

  • **kwargs (dict, optional) –

    Specify properties of the figure, axis, and plot appearance e.g.:

    plot_X(figsize=(4,6),label="your_label")

    Valid keyword arguments are:

    • figsize: tuple of length 2, the size of the figure (to be passed to matplotlib)

    • xlabel_fontsize: float, fontsize of the x label

    • ylabel_fontsize: float, fontsize of the y label

    • legend_kw: dict, any keyword arguments to be passed to ax.legend()

    • cmap: colormap to use for plotting, discretized into len(phi) colors

    • color: array of colors to use for each phi angle

    • ls: array of line styles to use for each phi angle

    • lw: array of line widths to use for each phi angle

    • marker: str, marker style to use for the axis plotted points

    • size: float, marker size to use for the axis plotted points

Returns:

  • fig (matplotlib.figure.Figure) – Figure being plotted to.

  • ax (matplotlib.axes.Axes or ndarray of Axes) – Axes being plotted to.

  • plot_data (dict) – dictionary of the data plotted, only returned if return_data=True

Examples

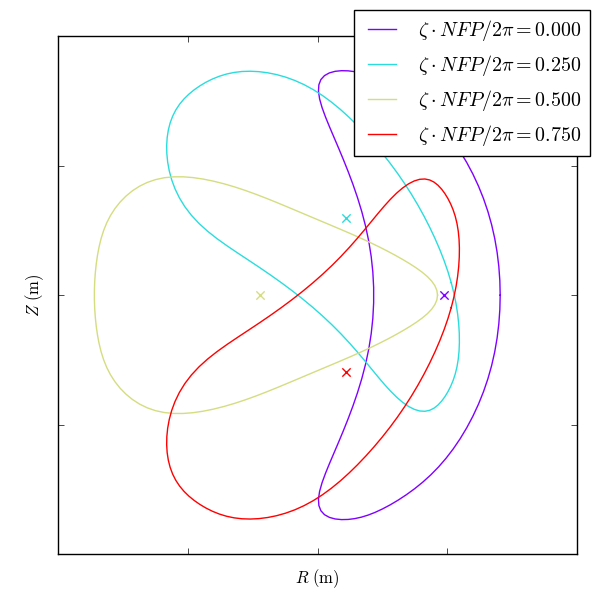

../../_images/plot_boundary.png
from desc.plotting import plot_boundary
fig, ax = plot_boundary(eq)
