Quadratic Flux Minimizing Surfaces
Quadratic-Flux-Minimizing (QFM) surfaces are a useful tool in vacuum stellarator optimization, where, given a coil magnetic field, one may extract a surface in space which minimizes the quadratic magnetic flux passing through it, that is,
\[\begin{equation}
S = \arg\min_S \int_S |B_n|^2 dS
\end{equation}\]
Where \(B_n = \mathbf{B} \cdot \mathbf{n}\) is the normal magnetic field on the surface \(S\), and the optimization is understood to be done under the constraint of the surface enclosing some amount of net toroidal magnetic flux. The surface \(S\) itself is described typically with a double Fourier series in the poloidal and toroidal angles (See the docs on basis functions for more details) describing the cylindrical \(R\) and \(Z\) coordinates of the surface, so the optimization is done by varying the Fourier coefficients describing the surface (or potentially, the magnetic field’s degrees of freedom as well). This short notebook will give an example of using QFM surfaces to extrace a surface from a magnetic field, and then solving the interior equilibrum with DESC and comparing it to the original magnetic field.
[1]:
import sys
import os
sys.path.insert(0, os.path.abspath("."))
sys.path.append(os.path.abspath("../../../"))
If you have access to a GPU, uncomment the following two lines before any DESC or JAX related imports. You should see about an order of magnitude speed improvement with only these two lines of code!
[2]:
# from desc import set_device
# set_device("gpu")
As mentioned in DESC Documentation on performance tips, one can use compilation cache directory to reduce the compilation overhead time. Note: One needs to create jax-caches folder manually.
[ ]:
# import jax
# jax.config.update("jax_compilation_cache_dir", "../jax-caches")
# jax.config.update("jax_persistent_cache_min_entry_size_bytes", -1)
# jax.config.update("jax_persistent_cache_min_compile_time_secs", 0)
[3]:
from desc.objectives import (
SurfaceQuadraticFlux,
ToroidalFlux,
ObjectiveFunction,
)
from desc.magnetic_fields import SplineMagneticField
from desc.geometry import FourierRZToroidalSurface
from desc.optimize import Optimizer
from desc.grid import LinearGrid
from desc.plotting import plot_2d, poincare_plot, plot_boundary, plot_surfaces
import numpy as np
An NVIDIA GPU may be present on this machine, but a CUDA-enabled jaxlib is not installed. Falling back to cpu.
DESC version 0.13.0+702.ge6b8a02dc.dirty,using JAX backend, jax version=0.4.33, jaxlib version=0.4.33, dtype=float64
Using device: CPU, with 31.17 GB available memory
First, we will load a magnetic field from an mgrid file (the same as is used in the stellarator free boundary notebook)
[4]:
extcur = [4700.0, 1000.0]
field = SplineMagneticField.from_mgrid(
"../../../tests/inputs/mgrid_test.nc", extcur=extcur
)

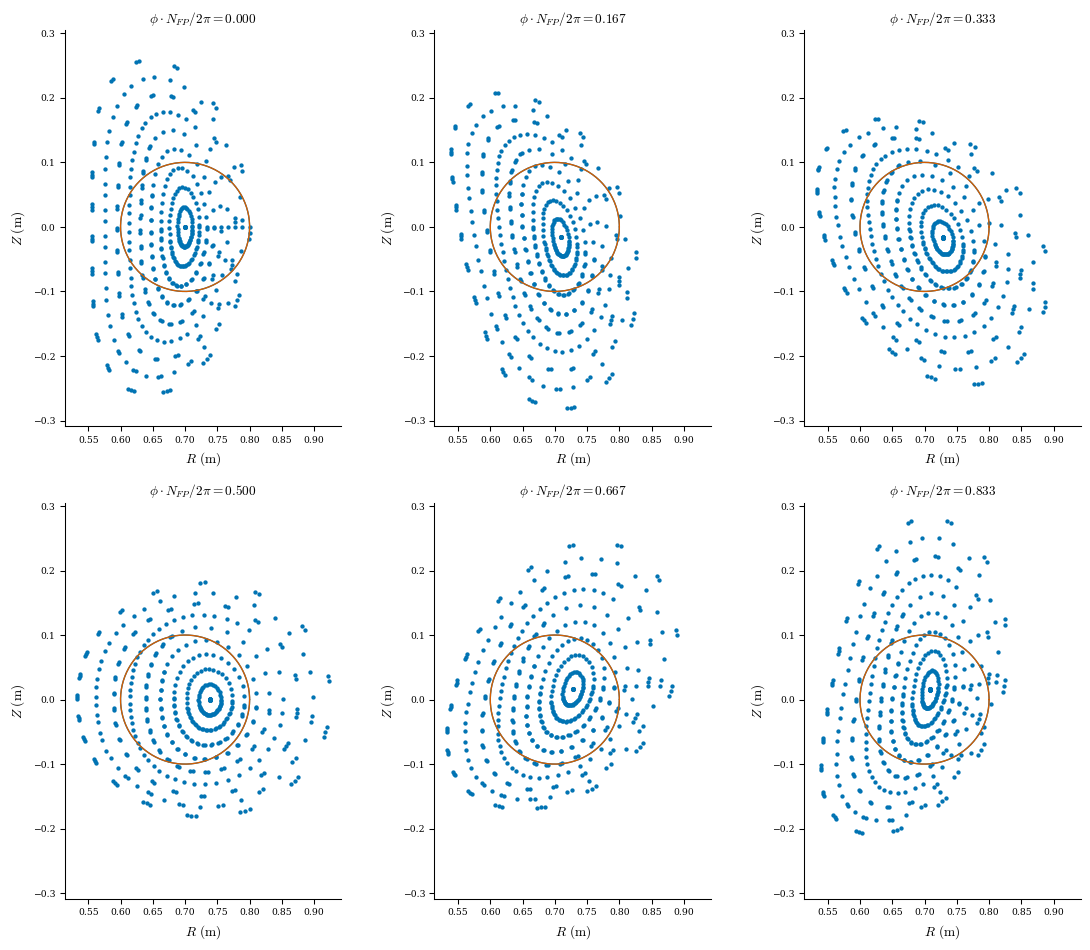

Our initial surface is a circular surface, which we see is not well-approximating any flux surfaces in this vacuum field.
[5]:
surface0 = FourierRZToroidalSurface(
R_lmn=[0.7, 0.1],
modes_R=[[0, 0], [1, 0]],
Z_lmn=[-0.1],
modes_Z=[[-1, 0]],
sym=True,
NFP=field.NFP,
M=6,
N=6,
)
fig, ax = plot_surfaces(surface0, rho=1.0, theta=0)
poincare_plot(
field,
R0=np.linspace(0.7, 0.8, 10),
Z0=np.zeros(10),
ax=ax,
NFP=field.NFP,
ntransit=50,
);
Let’s setup the optimization problem to find the QFM surface.
[6]:
# SurfaceQuadraticFlux objective is the one to use when trying to minimize quadratic flux for a surface
qflux = SurfaceQuadraticFlux(
surface0,
field,
eval_grid=LinearGrid(M=2 * surface0.M, N=2 * surface0.M, NFP=surface0.NFP),
field_fixed=True, # field is not being optimized
bs_chunk_size=10,
)
# Must include a ToroidalFlux or a Volume target to ensure we don't get a trivial solution of the surface collapsing to a point
target_psi = -0.035
tflux = ToroidalFlux(
surface0,
field,
target=target_psi, # the same toroidal flux as used in the free bdry eq
eq_fixed=False, # we will allow the thing passed in (QFM surface in this case) to vary
field_fixed=True, # field is not being optimized, so we fix it
)
obj = ObjectiveFunction(qflux)
opt = Optimizer("lsq-auglag")
(qfm_surf,), _ = opt.optimize(
surface0,
objective=obj,
constraints=(tflux,),
ftol=1e-5,
maxiter=500,
verbose=3,
copy=True,
)
Building objective: Surface Quadratic Flux
Precomputing transforms
Timer: Precomputing transforms = 1.28 sec
Timer: Objective build = 1.30 sec
Building objective: toroidal-flux
Precomputing transforms
Timer: Precomputing transforms = 673 ms
Timer: Objective build = 1.63 sec
Number of parameters: 169
Number of objectives: 625
Number of equality constraints: 1
Number of inequality constraints: 0
Timer: Initializing the optimization = 3.02 sec
Starting optimization
Using method: lsq-auglag
Iteration Total nfev Cost Cost reduction Step norm Optimality Constr viol. Penalty param max(|mltplr|)
0 1 6.632e+01 9.991e+00 1.383e-02 1.000e+01 0.000e+00
1 2 6.099e+01 5.329e+00 2.309e-03 9.376e+00 1.441e-02 1.000e+01 0.000e+00
2 3 4.257e+01 1.843e+01 9.279e-03 7.151e+00 1.665e-02 1.000e+01 0.000e+00
3 4 5.031e+00 3.754e+01 3.739e-02 1.582e+00 2.437e-02 1.000e+01 0.000e+00
4 5 5.032e+00 -5.593e-04 1.384e-01 1.868e+00 2.530e-03 1.000e+01 0.000e+00
5 6 1.301e-01 4.902e+00 2.761e-02 2.342e-01 1.653e-04 1.000e+01 0.000e+00
6 8 3.489e-03 1.266e-01 8.836e-03 3.046e-02 8.797e-04 1.000e+01 0.000e+00
7 10 6.393e-04 2.850e-03 3.736e-03 1.323e-02 1.053e-03 1.000e+01 0.000e+00
8 12 3.011e-04 3.382e-04 3.605e-03 9.304e-03 7.633e-04 1.000e+01 0.000e+00
9 13 1.259e-04 1.752e-04 3.131e-03 4.870e-03 3.205e-04 1.000e+01 0.000e+00
10 15 2.756e-05 9.835e-05 6.664e-04 3.526e-04 2.356e-04 1.000e+01 2.356e-03
11 17 2.609e-05 1.472e-06 8.462e-04 3.423e-04 7.418e-06 1.000e+01 2.356e-03
12 19 2.486e-05 1.230e-06 6.017e-04 3.074e-04 5.537e-05 1.000e+01 2.356e-03
13 21 2.382e-05 1.037e-06 6.531e-04 2.556e-04 7.293e-05 1.000e+01 2.356e-03
14 23 2.298e-05 8.403e-07 6.647e-04 3.027e-04 8.195e-05 1.000e+01 2.356e-03
15 25 2.221e-05 7.725e-07 6.710e-04 3.272e-04 8.953e-05 1.000e+01 2.356e-03
16 27 2.160e-05 6.086e-07 7.265e-04 3.979e-04 9.670e-05 1.000e+01 2.356e-03
17 28 2.109e-05 5.087e-07 7.709e-04 4.486e-04 1.033e-04 1.000e+01 2.356e-03
18 29 2.059e-05 5.035e-07 7.631e-04 4.334e-04 1.090e-04 1.000e+01 2.356e-03
19 30 2.009e-05 4.973e-07 7.334e-04 3.846e-04 1.140e-04 1.000e+01 2.356e-03
20 31 1.959e-05 4.982e-07 6.979e-04 3.209e-04 1.182e-04 1.000e+01 2.356e-03
21 32 1.910e-05 4.936e-07 6.665e-04 2.569e-04 1.219e-04 1.000e+01 2.356e-03
22 33 1.864e-05 4.542e-07 6.539e-04 2.642e-04 1.253e-04 1.000e+01 2.356e-03
23 34 1.826e-05 3.873e-07 6.632e-04 2.844e-04 1.288e-04 1.000e+01 2.356e-03
24 35 1.792e-05 3.315e-07 6.758e-04 2.952e-04 1.323e-04 1.000e+01 2.356e-03
25 36 1.763e-05 2.915e-07 6.806e-04 2.918e-04 1.358e-04 1.000e+01 2.356e-03
26 37 1.737e-05 2.580e-07 6.816e-04 2.794e-04 1.392e-04 1.000e+01 2.356e-03
27 38 1.714e-05 2.327e-07 6.830e-04 2.653e-04 1.425e-04 1.000e+01 2.356e-03
28 39 1.692e-05 2.173e-07 6.857e-04 2.515e-04 1.455e-04 1.000e+01 2.356e-03
29 40 1.671e-05 2.103e-07 6.885e-04 2.463e-04 1.483e-04 1.000e+01 2.356e-03
30 41 1.644e-05 2.792e-07 1.710e-04 1.522e-05 1.493e-04 1.000e+01 8.624e-04
31 42 1.636e-05 7.635e-08 7.517e-04 2.384e-04 8.010e-06 1.000e+01 8.624e-04
32 43 1.607e-05 2.891e-07 1.714e-04 1.490e-05 5.003e-06 1.000e+01 8.624e-04
33 45 1.602e-05 4.765e-08 1.724e-04 1.427e-05 5.063e-06 1.000e+01 8.624e-04
34 47 1.598e-05 4.644e-08 1.729e-04 1.395e-05 5.526e-06 1.000e+01 8.624e-04
35 49 1.593e-05 4.570e-08 1.733e-04 1.371e-05 6.047e-06 1.000e+01 8.624e-04
36 51 1.589e-05 4.502e-08 1.737e-04 1.352e-05 6.579e-06 1.000e+01 8.624e-04
37 53 1.584e-05 4.437e-08 1.741e-04 1.334e-05 7.112e-06 1.000e+01 8.624e-04
38 55 1.580e-05 4.371e-08 1.745e-04 1.318e-05 7.629e-06 1.000e+01 8.624e-04
39 57 1.575e-05 4.306e-08 1.749e-04 1.301e-05 8.139e-06 1.000e+01 8.624e-04
40 59 1.571e-05 4.239e-08 1.753e-04 1.285e-05 8.644e-06 1.000e+01 8.624e-04
41 61 1.567e-05 4.173e-08 1.757e-04 1.270e-05 9.145e-06 1.000e+01 8.624e-04
42 63 1.563e-05 4.106e-08 1.762e-04 1.255e-05 9.639e-06 1.000e+01 8.624e-04
43 65 1.559e-05 4.039e-08 1.766e-04 1.240e-05 1.012e-05 1.000e+01 8.624e-04
44 67 1.555e-05 3.972e-08 1.771e-04 1.225e-05 1.061e-05 1.000e+01 8.624e-04
45 69 1.551e-05 3.905e-08 1.776e-04 1.214e-05 1.109e-05 1.000e+01 8.624e-04
46 71 1.547e-05 3.837e-08 1.781e-04 1.203e-05 1.158e-05 1.000e+01 8.624e-04
47 73 1.543e-05 3.771e-08 1.786e-04 1.191e-05 1.204e-05 1.000e+01 8.624e-04
48 75 1.540e-05 3.706e-08 1.790e-04 1.179e-05 1.249e-05 1.000e+01 8.624e-04
49 77 1.536e-05 3.640e-08 1.795e-04 1.167e-05 1.295e-05 1.000e+01 8.624e-04
50 79 1.532e-05 3.577e-08 1.801e-04 1.154e-05 1.340e-05 1.000e+01 8.624e-04
51 81 1.529e-05 3.516e-08 1.806e-04 1.143e-05 1.385e-05 1.000e+01 8.624e-04
52 83 1.525e-05 3.457e-08 1.813e-04 1.132e-05 1.430e-05 1.000e+01 8.624e-04
53 85 1.522e-05 3.401e-08 1.819e-04 1.119e-05 1.474e-05 1.000e+01 8.624e-04
54 87 1.519e-05 3.349e-08 1.826e-04 1.102e-05 1.515e-05 1.000e+01 8.624e-04
55 89 1.515e-05 3.297e-08 1.833e-04 1.083e-05 1.554e-05 1.000e+01 8.624e-04
56 91 1.512e-05 3.249e-08 1.841e-04 1.061e-05 1.592e-05 1.000e+01 8.624e-04
57 93 1.509e-05 3.202e-08 1.849e-04 1.038e-05 1.630e-05 1.000e+01 8.624e-04
58 95 1.506e-05 3.159e-08 1.856e-04 1.090e-05 1.666e-05 1.000e+01 8.624e-04
59 97 1.503e-05 3.120e-08 1.865e-04 1.140e-05 1.702e-05 1.000e+01 8.624e-04
60 99 1.500e-05 3.082e-08 1.873e-04 1.179e-05 1.737e-05 1.000e+01 8.624e-04
61 101 1.497e-05 3.048e-08 1.881e-04 1.213e-05 1.772e-05 1.000e+01 8.624e-04
62 103 1.494e-05 3.016e-08 1.890e-04 1.251e-05 1.808e-05 1.000e+01 8.624e-04
63 105 1.491e-05 2.985e-08 1.899e-04 1.289e-05 1.847e-05 1.000e+01 8.624e-04
64 107 1.488e-05 2.951e-08 1.902e-04 1.308e-05 1.889e-05 1.000e+01 8.624e-04
65 109 1.485e-05 2.915e-08 1.904e-04 1.321e-05 1.932e-05 1.000e+01 8.624e-04
66 111 1.482e-05 2.874e-08 1.901e-04 1.320e-05 1.975e-05 1.000e+01 8.624e-04
67 113 1.479e-05 2.830e-08 1.894e-04 1.342e-05 2.018e-05 1.000e+01 8.624e-04
68 115 1.476e-05 2.781e-08 1.884e-04 1.417e-05 2.062e-05 1.000e+01 8.624e-04
69 117 1.473e-05 2.726e-08 1.872e-04 1.483e-05 2.107e-05 1.000e+01 8.624e-04
70 119 1.471e-05 2.668e-08 1.856e-04 1.534e-05 2.154e-05 1.000e+01 8.624e-04
71 121 1.468e-05 2.605e-08 1.837e-04 1.568e-05 2.201e-05 1.000e+01 8.624e-04
72 123 1.466e-05 2.540e-08 1.815e-04 1.583e-05 2.248e-05 1.000e+01 8.624e-04
73 125 1.463e-05 2.475e-08 1.794e-04 1.577e-05 2.294e-05 1.000e+01 8.624e-04
74 127 1.461e-05 2.409e-08 1.773e-04 1.550e-05 2.340e-05 1.000e+01 8.624e-04
75 129 1.458e-05 2.345e-08 1.752e-04 1.500e-05 2.385e-05 1.000e+01 8.624e-04
76 131 1.456e-05 2.285e-08 1.731e-04 1.423e-05 2.429e-05 1.000e+01 8.624e-04
77 133 1.454e-05 2.230e-08 1.714e-04 1.321e-05 2.472e-05 1.000e+01 8.624e-04
78 135 1.452e-05 2.180e-08 1.700e-04 1.269e-05 2.514e-05 1.000e+01 8.624e-04
79 137 1.450e-05 2.136e-08 1.687e-04 1.300e-05 2.553e-05 1.000e+01 8.624e-04
80 139 1.448e-05 2.098e-08 1.676e-04 1.319e-05 2.590e-05 1.000e+01 8.624e-04
81 141 1.445e-05 2.066e-08 1.668e-04 1.326e-05 2.625e-05 1.000e+01 8.624e-04
82 143 1.443e-05 2.039e-08 1.664e-04 1.319e-05 2.658e-05 1.000e+01 8.624e-04
83 145 1.441e-05 2.016e-08 1.661e-04 1.292e-05 2.689e-05 1.000e+01 8.624e-04
84 147 1.439e-05 1.994e-08 1.661e-04 1.243e-05 2.717e-05 1.000e+01 8.624e-04
85 149 1.437e-05 1.974e-08 1.661e-04 1.172e-05 2.744e-05 1.000e+01 8.624e-04
86 151 1.435e-05 1.954e-08 1.665e-04 1.089e-05 2.769e-05 1.000e+01 8.624e-04
87 153 1.434e-05 1.935e-08 1.670e-04 1.093e-05 2.794e-05 1.000e+01 8.624e-04
88 155 1.432e-05 1.916e-08 1.677e-04 1.175e-05 2.817e-05 1.000e+01 8.624e-04
89 157 1.430e-05 1.899e-08 1.683e-04 1.264e-05 2.839e-05 1.000e+01 8.624e-04
90 159 1.428e-05 1.883e-08 1.690e-04 1.351e-05 2.860e-05 1.000e+01 8.624e-04
91 161 1.426e-05 1.870e-08 1.693e-04 1.428e-05 2.881e-05 1.000e+01 8.624e-04
92 163 1.424e-05 1.860e-08 1.694e-04 1.488e-05 2.900e-05 1.000e+01 8.624e-04
93 165 1.422e-05 1.854e-08 1.690e-04 1.529e-05 2.919e-05 1.000e+01 8.624e-04
94 167 1.420e-05 1.852e-08 1.682e-04 1.550e-05 2.938e-05 1.000e+01 8.624e-04
95 169 1.419e-05 1.855e-08 1.670e-04 1.543e-05 2.954e-05 1.000e+01 8.624e-04
96 171 1.417e-05 1.862e-08 1.653e-04 1.512e-05 2.971e-05 1.000e+01 8.624e-04
97 173 1.415e-05 1.873e-08 1.636e-04 1.475e-05 2.987e-05 1.000e+01 8.624e-04
98 175 1.413e-05 1.888e-08 1.616e-04 1.424e-05 3.003e-05 1.000e+01 8.624e-04
99 177 1.411e-05 1.905e-08 1.597e-04 1.363e-05 3.018e-05 1.000e+01 8.624e-04
100 179 1.409e-05 1.922e-08 1.577e-04 1.293e-05 3.031e-05 1.000e+01 8.624e-04
101 181 1.407e-05 1.937e-08 1.559e-04 1.225e-05 3.042e-05 1.000e+01 8.624e-04
102 183 1.405e-05 1.949e-08 1.544e-04 1.168e-05 3.054e-05 1.000e+01 8.624e-04
103 185 1.403e-05 1.955e-08 1.531e-04 1.112e-05 3.065e-05 1.000e+01 8.624e-04
104 187 1.401e-05 1.955e-08 1.520e-04 1.056e-05 3.076e-05 1.000e+01 8.624e-04
105 189 1.399e-05 1.949e-08 1.511e-04 1.003e-05 3.086e-05 1.000e+01 8.624e-04
106 191 1.397e-05 1.934e-08 1.506e-04 9.591e-06 3.097e-05 1.000e+01 5.527e-04
107 193 1.394e-05 3.492e-08 1.658e-04 1.126e-05 1.813e-06 1.000e+01 5.527e-04
108 195 1.392e-05 1.961e-08 1.500e-04 9.206e-06 5.305e-07 1.000e+01 5.527e-04
109 197 1.390e-05 1.841e-08 1.500e-04 9.787e-06 5.650e-07 1.000e+01 5.527e-04
110 199 1.388e-05 1.791e-08 1.502e-04 1.035e-05 6.695e-07 1.000e+01 5.527e-04
111 201 1.387e-05 1.740e-08 1.505e-04 1.075e-05 7.835e-07 1.000e+01 5.527e-04
112 203 1.385e-05 1.685e-08 1.509e-04 1.141e-05 9.021e-07 1.000e+01 5.527e-04
113 205 1.383e-05 1.628e-08 1.514e-04 1.207e-05 1.022e-06 1.000e+01 5.527e-04
114 207 1.382e-05 1.570e-08 1.521e-04 1.272e-05 1.139e-06 1.000e+01 5.527e-04
115 209 1.380e-05 1.510e-08 1.531e-04 1.335e-05 1.259e-06 1.000e+01 5.527e-04
116 211 1.379e-05 1.449e-08 1.546e-04 1.392e-05 1.380e-06 1.000e+01 5.527e-04
117 213 1.377e-05 1.389e-08 1.566e-04 1.441e-05 1.497e-06 1.000e+01 5.527e-04
118 215 1.376e-05 1.329e-08 1.592e-04 1.477e-05 1.612e-06 1.000e+01 5.527e-04
119 217 1.375e-05 1.272e-08 1.623e-04 1.500e-05 1.719e-06 1.000e+01 5.527e-04
120 219 1.374e-05 1.218e-08 1.659e-04 1.510e-05 1.823e-06 1.000e+01 5.527e-04
121 221 1.372e-05 1.167e-08 1.697e-04 1.507e-05 1.922e-06 1.000e+01 5.527e-04
122 223 1.371e-05 1.118e-08 1.737e-04 1.486e-05 2.020e-06 1.000e+01 5.527e-04
123 225 1.370e-05 1.074e-08 1.775e-04 1.586e-05 2.102e-06 1.000e+01 5.527e-04
124 227 1.369e-05 1.034e-08 1.815e-04 1.763e-05 2.172e-06 1.000e+01 5.527e-04
125 229 1.368e-05 9.983e-09 1.853e-04 1.933e-05 2.240e-06 1.000e+01 5.527e-04
126 231 1.367e-05 9.667e-09 1.889e-04 2.092e-05 2.304e-06 1.000e+01 5.527e-04
127 233 1.366e-05 9.393e-09 1.922e-04 2.234e-05 2.362e-06 1.000e+01 5.527e-04
128 235 1.365e-05 9.162e-09 1.951e-04 2.371e-05 2.424e-06 1.000e+01 5.527e-04
129 237 1.364e-05 8.971e-09 1.977e-04 2.499e-05 2.485e-06 1.000e+01 5.527e-04
130 239 1.364e-05 8.812e-09 1.999e-04 2.612e-05 2.544e-06 1.000e+01 5.527e-04
131 241 1.363e-05 8.672e-09 2.018e-04 2.711e-05 2.601e-06 1.000e+01 5.527e-04
132 243 1.362e-05 8.532e-09 2.033e-04 2.790e-05 2.657e-06 1.000e+01 5.527e-04
133 245 1.361e-05 8.406e-09 2.044e-04 2.844e-05 2.705e-06 1.000e+01 5.527e-04
134 247 1.360e-05 8.301e-09 2.053e-04 2.887e-05 2.757e-06 1.000e+01 5.527e-04
135 249 1.359e-05 8.191e-09 2.061e-04 2.917e-05 2.822e-06 1.000e+01 5.527e-04
136 251 1.359e-05 8.126e-09 2.065e-04 2.934e-05 2.891e-06 1.000e+01 5.527e-04
137 253 1.358e-05 8.055e-09 2.066e-04 2.943e-05 2.959e-06 1.000e+01 5.527e-04
138 255 1.357e-05 7.977e-09 2.067e-04 2.947e-05 3.029e-06 1.000e+01 5.527e-04
139 257 1.356e-05 7.887e-09 2.068e-04 2.944e-05 3.099e-06 1.000e+01 5.527e-04
140 259 1.355e-05 7.842e-09 2.066e-04 2.925e-05 3.188e-06 1.000e+01 5.527e-04
141 261 1.355e-05 7.780e-09 2.065e-04 2.912e-05 3.274e-06 1.000e+01 5.527e-04
142 263 1.354e-05 7.722e-09 2.064e-04 2.892e-05 3.361e-06 1.000e+01 5.527e-04
143 265 1.353e-05 7.657e-09 2.062e-04 2.866e-05 3.455e-06 1.000e+01 5.527e-04
144 267 1.352e-05 7.609e-09 2.059e-04 2.827e-05 3.569e-06 1.000e+01 5.527e-04
145 269 1.352e-05 7.538e-09 2.057e-04 2.796e-05 3.693e-06 1.000e+01 5.527e-04
146 271 1.351e-05 7.474e-09 2.055e-04 2.765e-05 3.821e-06 1.000e+01 5.527e-04
147 273 1.350e-05 7.412e-09 2.052e-04 2.730e-05 3.954e-06 1.000e+01 5.527e-04
148 275 1.349e-05 7.354e-09 2.050e-04 2.691e-05 4.083e-06 1.000e+01 5.527e-04
149 277 1.349e-05 7.289e-09 2.048e-04 2.648e-05 4.211e-06 1.000e+01 5.527e-04
150 279 1.348e-05 7.224e-09 2.046e-04 2.601e-05 4.334e-06 1.000e+01 5.527e-04
151 281 1.347e-05 7.151e-09 2.046e-04 2.557e-05 4.460e-06 1.000e+01 5.527e-04
152 283 1.346e-05 7.077e-09 2.046e-04 2.510e-05 4.588e-06 1.000e+01 5.527e-04
153 285 1.346e-05 7.001e-09 2.046e-04 2.464e-05 4.717e-06 1.000e+01 5.527e-04
154 287 1.345e-05 6.919e-09 2.050e-04 2.424e-05 4.850e-06 1.000e+01 5.527e-04
155 289 1.344e-05 6.825e-09 2.053e-04 2.384e-05 4.988e-06 1.000e+01 5.527e-04
156 291 1.344e-05 6.715e-09 2.056e-04 2.347e-05 5.131e-06 1.000e+01 5.527e-04
157 293 1.343e-05 6.569e-09 2.055e-04 2.344e-05 5.270e-06 1.000e+01 5.527e-04
158 295 1.342e-05 6.421e-09 2.051e-04 2.365e-05 5.395e-06 1.000e+01 5.527e-04
159 297 1.342e-05 6.260e-09 2.048e-04 2.379e-05 5.508e-06 1.000e+01 5.527e-04
160 299 1.341e-05 6.077e-09 2.045e-04 2.395e-05 5.621e-06 1.000e+01 5.527e-04
161 301 1.341e-05 5.919e-09 2.046e-04 2.407e-05 5.715e-06 1.000e+01 5.527e-04
162 303 1.340e-05 5.754e-09 2.054e-04 2.396e-05 5.808e-06 1.000e+01 5.527e-04
163 305 1.339e-05 5.562e-09 2.058e-04 2.419e-05 5.894e-06 1.000e+01 5.527e-04
164 307 1.339e-05 5.366e-09 2.060e-04 2.468e-05 5.969e-06 1.000e+01 5.527e-04
165 309 1.338e-05 5.133e-09 2.055e-04 2.544e-05 6.049e-06 1.000e+01 5.527e-04
166 311 1.338e-05 4.896e-09 2.044e-04 2.640e-05 6.102e-06 1.000e+01 5.527e-04
167 313 1.337e-05 4.654e-09 2.036e-04 2.741e-05 6.162e-06 1.000e+01 5.527e-04
168 315 1.337e-05 4.427e-09 2.032e-04 2.851e-05 6.215e-06 1.000e+01 5.527e-04
169 317 1.337e-05 4.246e-09 2.030e-04 2.922e-05 6.270e-06 1.000e+01 5.527e-04
170 319 1.336e-05 4.061e-09 2.028e-04 2.985e-05 6.319e-06 1.000e+01 5.527e-04
171 321 1.336e-05 3.885e-09 2.024e-04 3.038e-05 6.358e-06 1.000e+01 5.527e-04
172 323 1.335e-05 3.759e-09 2.022e-04 3.076e-05 6.402e-06 1.000e+01 5.527e-04
173 325 1.335e-05 3.618e-09 2.021e-04 3.098e-05 6.448e-06 1.000e+01 5.527e-04
174 326 1.335e-05 3.500e-09 2.020e-04 3.112e-05 6.481e-06 1.000e+01 5.527e-04
175 327 1.334e-05 3.379e-09 2.019e-04 3.133e-05 6.499e-06 1.000e+01 5.527e-04
176 328 1.334e-05 3.292e-09 2.016e-04 3.161e-05 6.498e-06 1.000e+01 5.527e-04
177 329 1.334e-05 3.264e-09 2.019e-04 3.186e-05 6.501e-06 1.000e+01 5.527e-04
178 330 1.333e-05 3.190e-09 2.025e-04 3.205e-05 6.510e-06 1.000e+01 5.527e-04
179 331 1.333e-05 3.069e-09 2.025e-04 3.228e-05 6.523e-06 1.000e+01 5.527e-04
180 332 1.333e-05 2.991e-09 2.028e-04 3.266e-05 6.529e-06 1.000e+01 5.527e-04
181 333 1.332e-05 2.912e-09 2.026e-04 3.304e-05 6.533e-06 1.000e+01 5.527e-04
182 334 1.332e-05 2.816e-09 2.025e-04 3.364e-05 6.544e-06 1.000e+01 5.527e-04
183 335 1.332e-05 2.759e-09 2.022e-04 3.416e-05 6.554e-06 1.000e+01 5.527e-04
184 336 1.332e-05 2.696e-09 2.020e-04 3.469e-05 6.565e-06 1.000e+01 5.527e-04
185 337 1.331e-05 2.659e-09 2.019e-04 3.514e-05 6.567e-06 1.000e+01 5.527e-04
186 338 1.331e-05 2.631e-09 2.020e-04 3.557e-05 6.567e-06 1.000e+01 5.527e-04
187 339 1.331e-05 2.543e-09 2.022e-04 3.613e-05 6.576e-06 1.000e+01 5.527e-04
188 340 1.331e-05 2.539e-09 2.024e-04 3.655e-05 6.582e-06 1.000e+01 5.527e-04
189 341 1.330e-05 2.554e-09 2.026e-04 3.685e-05 6.589e-06 1.000e+01 5.527e-04
190 342 1.330e-05 2.537e-09 2.028e-04 3.709e-05 6.598e-06 1.000e+01 5.527e-04
191 343 1.330e-05 2.572e-09 2.026e-04 3.707e-05 6.615e-06 1.000e+01 5.527e-04
192 344 1.330e-05 2.547e-09 2.026e-04 3.709e-05 6.632e-06 1.000e+01 5.527e-04
193 345 1.329e-05 2.487e-09 2.029e-04 3.726e-05 6.647e-06 1.000e+01 5.527e-04
194 346 1.329e-05 2.536e-09 2.027e-04 3.700e-05 6.662e-06 1.000e+01 5.527e-04
195 347 1.329e-05 2.518e-09 2.025e-04 3.673e-05 6.680e-06 1.000e+01 5.527e-04
196 348 1.329e-05 2.505e-09 2.022e-04 3.644e-05 6.699e-06 1.000e+01 5.527e-04
197 349 1.328e-05 2.511e-09 2.023e-04 3.630e-05 6.717e-06 1.000e+01 5.527e-04
198 350 1.328e-05 2.561e-09 2.022e-04 3.607e-05 6.738e-06 1.000e+01 5.527e-04
199 351 1.328e-05 2.546e-09 2.025e-04 3.605e-05 6.757e-06 1.000e+01 5.527e-04
200 352 1.328e-05 2.591e-09 2.027e-04 3.586e-05 6.780e-06 1.000e+01 5.527e-04
201 353 1.327e-05 2.630e-09 2.028e-04 3.565e-05 6.801e-06 1.000e+01 5.527e-04
202 354 1.327e-05 2.677e-09 2.026e-04 3.542e-05 6.813e-06 1.000e+01 5.527e-04
203 355 1.327e-05 2.731e-09 2.022e-04 3.500e-05 6.832e-06 1.000e+01 5.527e-04
204 356 1.326e-05 2.714e-09 2.022e-04 3.485e-05 6.849e-06 1.000e+01 5.527e-04
205 357 1.326e-05 2.786e-09 2.020e-04 3.460e-05 6.873e-06 1.000e+01 5.527e-04
206 358 1.326e-05 2.800e-09 2.016e-04 3.429e-05 6.903e-06 1.000e+01 5.527e-04
207 359 1.326e-05 2.768e-09 2.016e-04 3.426e-05 6.930e-06 1.000e+01 5.527e-04
208 360 1.325e-05 2.791e-09 2.015e-04 3.419e-05 6.955e-06 1.000e+01 5.527e-04
209 361 1.325e-05 2.783e-09 2.017e-04 3.420e-05 6.977e-06 1.000e+01 5.527e-04
210 362 1.325e-05 2.778e-09 2.018e-04 3.429e-05 7.003e-06 1.000e+01 5.527e-04
211 363 1.325e-05 2.762e-09 2.017e-04 3.442e-05 7.025e-06 1.000e+01 5.527e-04
212 364 1.324e-05 2.768e-09 2.016e-04 3.458e-05 7.032e-06 1.000e+01 5.527e-04
213 365 1.324e-05 2.783e-09 2.018e-04 3.474e-05 7.024e-06 1.000e+01 5.527e-04
214 366 1.324e-05 2.802e-09 2.015e-04 3.467e-05 7.020e-06 1.000e+01 5.527e-04
215 367 1.323e-05 2.806e-09 2.007e-04 3.430e-05 7.018e-06 1.000e+01 5.527e-04
216 368 1.323e-05 2.758e-09 2.001e-04 3.399e-05 7.027e-06 1.000e+01 5.527e-04
217 369 1.323e-05 2.708e-09 1.996e-04 3.382e-05 7.038e-06 1.000e+01 5.527e-04
218 370 1.323e-05 2.658e-09 1.994e-04 3.400e-05 7.049e-06 1.000e+01 5.527e-04
219 371 1.322e-05 2.624e-09 1.997e-04 3.444e-05 7.055e-06 1.000e+01 5.527e-04
220 372 1.322e-05 2.617e-09 1.999e-04 3.497e-05 7.057e-06 1.000e+01 5.527e-04
221 373 1.322e-05 2.592e-09 2.006e-04 3.571e-05 7.051e-06 1.000e+01 5.527e-04
222 374 1.322e-05 2.637e-09 2.011e-04 3.629e-05 7.042e-06 1.000e+01 5.527e-04
223 375 1.321e-05 2.724e-09 2.011e-04 3.665e-05 7.022e-06 1.000e+01 5.527e-04
224 376 1.321e-05 2.817e-09 2.007e-04 3.677e-05 6.990e-06 1.000e+01 5.527e-04
225 377 1.321e-05 2.895e-09 1.999e-04 3.662e-05 6.959e-06 1.000e+01 5.527e-04
226 378 1.320e-05 2.953e-09 1.993e-04 3.665e-05 6.921e-06 1.000e+01 5.527e-04
227 379 1.320e-05 3.150e-09 1.985e-04 3.650e-05 6.876e-06 1.000e+01 5.527e-04
228 380 1.320e-05 3.404e-09 1.971e-04 3.598e-05 6.821e-06 1.000e+01 5.527e-04
229 381 1.319e-05 3.759e-09 1.949e-04 3.495e-05 6.750e-06 1.000e+01 5.527e-04
230 382 1.319e-05 4.232e-09 1.919e-04 3.333e-05 6.662e-06 1.000e+01 5.527e-04
231 384 1.318e-05 4.937e-09 1.871e-04 3.064e-05 6.558e-06 1.000e+01 5.527e-04
232 386 1.318e-05 5.795e-09 1.807e-04 2.703e-05 6.434e-06 1.000e+01 5.527e-04
233 388 1.317e-05 6.826e-09 1.715e-04 2.247e-05 6.302e-06 1.000e+01 5.527e-04
234 390 1.316e-05 7.794e-09 1.620e-04 1.798e-05 6.165e-06 1.000e+01 5.527e-04
235 392 1.316e-05 8.607e-09 1.541e-04 1.409e-05 6.030e-06 1.000e+01 5.527e-04
236 394 1.315e-05 9.042e-09 1.488e-04 1.183e-05 5.904e-06 1.000e+01 5.527e-04
237 396 1.314e-05 8.916e-09 1.474e-04 1.129e-05 5.787e-06 1.000e+01 5.527e-04
238 398 1.313e-05 8.247e-09 1.488e-04 1.057e-05 5.692e-06 1.000e+01 5.527e-04
239 400 1.312e-05 7.224e-09 1.521e-04 9.512e-06 5.621e-06 1.000e+01 5.527e-04
240 402 1.312e-05 6.078e-09 1.572e-04 8.814e-06 5.572e-06 1.000e+01 5.527e-04
241 404 1.311e-05 4.942e-09 1.652e-04 9.320e-06 5.545e-06 1.000e+01 5.527e-04
242 406 1.311e-05 3.850e-09 1.785e-04 1.234e-05 5.547e-06 1.000e+01 5.527e-04
243 408 1.310e-05 2.793e-09 2.003e-04 1.640e-05 5.569e-06 1.000e+01 5.527e-04
244 410 1.310e-05 2.073e-09 2.232e-04 1.982e-05 5.570e-06 1.000e+01 5.527e-04
245 411 1.310e-05 1.490e-09 2.561e-04 2.773e-05 5.607e-06 1.000e+01 5.527e-04
246 412 1.310e-05 2.707e-09 6.750e-05 1.765e-06 5.595e-06 1.000e+01 5.527e-04
247 414 1.310e-05 4.647e-10 6.954e-05 1.890e-06 5.596e-06 1.000e+01 5.527e-04
248 416 1.310e-05 4.424e-10 7.134e-05 1.956e-06 5.601e-06 1.000e+01 5.527e-04
249 418 1.310e-05 4.273e-10 7.285e-05 2.011e-06 5.608e-06 1.000e+01 5.527e-04
250 420 1.310e-05 4.153e-10 7.412e-05 2.067e-06 5.616e-06 1.000e+01 5.527e-04
251 422 1.310e-05 4.046e-10 7.509e-05 2.123e-06 5.622e-06 1.000e+01 5.527e-04
252 424 1.310e-05 3.960e-10 7.576e-05 2.183e-06 5.625e-06 1.000e+01 5.527e-04
253 426 1.310e-05 3.860e-10 7.643e-05 2.240e-06 5.637e-06 1.000e+01 5.527e-04
254 428 1.309e-05 3.794e-10 7.702e-05 2.291e-06 5.654e-06 1.000e+01 5.527e-04
255 430 1.309e-05 3.770e-10 7.753e-05 2.336e-06 5.671e-06 1.000e+01 5.527e-04
256 432 1.309e-05 3.756e-10 7.786e-05 2.351e-06 5.686e-06 1.000e+01 5.527e-04
257 434 1.309e-05 3.739e-10 7.830e-05 2.372e-06 5.705e-06 1.000e+01 5.527e-04
258 436 1.309e-05 3.717e-10 7.845e-05 2.406e-06 5.729e-06 1.000e+01 5.527e-04
259 438 1.309e-05 3.737e-10 7.849e-05 2.423e-06 5.746e-06 1.000e+01 5.527e-04
260 440 1.309e-05 3.752e-10 7.822e-05 2.422e-06 5.757e-06 1.000e+01 5.527e-04
261 442 1.309e-05 3.742e-10 7.800e-05 2.426e-06 5.766e-06 1.000e+01 5.527e-04
262 444 1.309e-05 3.750e-10 7.782e-05 2.426e-06 5.773e-06 1.000e+01 5.527e-04
263 446 1.309e-05 3.795e-10 7.799e-05 2.425e-06 5.774e-06 1.000e+01 5.527e-04
264 448 1.309e-05 3.814e-10 7.814e-05 2.432e-06 5.775e-06 1.000e+01 5.527e-04
265 450 1.309e-05 3.818e-10 7.823e-05 2.444e-06 5.776e-06 1.000e+01 5.527e-04
266 452 1.309e-05 3.784e-10 7.825e-05 2.471e-06 5.780e-06 1.000e+01 5.527e-04
267 454 1.309e-05 3.775e-10 7.835e-05 2.502e-06 5.787e-06 1.000e+01 5.527e-04
268 456 1.309e-05 3.789e-10 7.852e-05 2.535e-06 5.794e-06 1.000e+01 5.527e-04
269 458 1.309e-05 3.826e-10 7.883e-05 2.588e-06 5.804e-06 1.000e+01 5.527e-04
270 460 1.309e-05 3.868e-10 7.922e-05 2.644e-06 5.819e-06 1.000e+01 5.527e-04
271 462 1.309e-05 3.909e-10 7.944e-05 2.683e-06 5.840e-06 1.000e+01 5.527e-04
272 464 1.309e-05 3.968e-10 7.971e-05 2.726e-06 5.866e-06 1.000e+01 5.527e-04
273 466 1.309e-05 4.059e-10 8.010e-05 2.769e-06 5.898e-06 1.000e+01 5.527e-04
274 468 1.309e-05 4.177e-10 8.042e-05 2.817e-06 5.929e-06 1.000e+01 5.527e-04
275 470 1.309e-05 4.306e-10 8.067e-05 2.866e-06 5.960e-06 1.000e+01 5.527e-04
276 472 1.309e-05 4.456e-10 8.093e-05 2.889e-06 5.988e-06 1.000e+01 5.527e-04
277 474 1.309e-05 4.614e-10 8.125e-05 2.901e-06 6.013e-06 1.000e+01 5.527e-04
278 476 1.309e-05 4.745e-10 8.148e-05 2.918e-06 6.039e-06 1.000e+01 5.527e-04
279 478 1.308e-05 4.900e-10 8.180e-05 2.944e-06 6.067e-06 1.000e+01 5.527e-04
280 480 1.308e-05 5.181e-10 8.209e-05 2.981e-06 6.091e-06 1.000e+01 5.527e-04
281 482 1.308e-05 5.478e-10 8.266e-05 2.981e-06 6.126e-06 1.000e+01 5.527e-04
282 484 1.308e-05 5.830e-10 8.307e-05 2.991e-06 6.163e-06 1.000e+01 5.527e-04
283 486 1.308e-05 6.171e-10 8.340e-05 2.997e-06 6.206e-06 1.000e+01 5.527e-04
284 488 1.308e-05 6.530e-10 8.365e-05 2.995e-06 6.251e-06 1.000e+01 5.527e-04
285 490 1.308e-05 6.906e-10 8.385e-05 2.989e-06 6.298e-06 1.000e+01 5.527e-04
286 492 1.308e-05 7.277e-10 8.401e-05 2.979e-06 6.345e-06 1.000e+01 5.527e-04
287 494 1.308e-05 7.600e-10 8.411e-05 2.971e-06 6.391e-06 1.000e+01 5.527e-04
288 496 1.308e-05 7.903e-10 8.394e-05 2.960e-06 6.432e-06 1.000e+01 5.527e-04
289 498 1.308e-05 8.147e-10 8.385e-05 2.948e-06 6.471e-06 1.000e+01 5.527e-04
290 500 1.308e-05 8.353e-10 8.371e-05 2.936e-06 6.511e-06 1.000e+01 5.527e-04
291 502 1.308e-05 8.559e-10 8.361e-05 2.922e-06 6.551e-06 1.000e+01 5.527e-04
292 504 1.308e-05 8.767e-10 8.349e-05 2.911e-06 6.589e-06 1.000e+01 5.527e-04
293 506 1.307e-05 8.934e-10 8.339e-05 2.899e-06 6.629e-06 1.000e+01 5.527e-04
294 508 1.307e-05 9.071e-10 8.328e-05 2.889e-06 6.674e-06 1.000e+01 5.527e-04
295 510 1.307e-05 9.218e-10 8.319e-05 2.875e-06 6.720e-06 1.000e+01 5.527e-04
296 512 1.307e-05 9.364e-10 8.313e-05 2.858e-06 6.768e-06 1.000e+01 5.527e-04
297 514 1.307e-05 9.507e-10 8.314e-05 2.835e-06 6.819e-06 1.000e+01 5.527e-04
298 516 1.307e-05 9.660e-10 8.314e-05 2.812e-06 6.870e-06 1.000e+01 5.527e-04
299 518 1.307e-05 9.825e-10 8.314e-05 2.785e-06 6.917e-06 1.000e+01 5.527e-04
300 520 1.307e-05 9.925e-10 8.307e-05 2.760e-06 6.960e-06 1.000e+01 5.527e-04
301 522 1.307e-05 1.003e-09 8.292e-05 2.737e-06 6.994e-06 1.000e+01 5.527e-04
302 524 1.307e-05 1.010e-09 8.282e-05 2.713e-06 7.028e-06 1.000e+01 5.527e-04
303 526 1.307e-05 1.018e-09 8.281e-05 2.675e-06 7.074e-06 1.000e+01 5.527e-04
304 528 1.306e-05 1.026e-09 8.279e-05 2.646e-06 7.118e-06 1.000e+01 5.527e-04
305 530 1.306e-05 1.040e-09 8.271e-05 2.628e-06 7.146e-06 1.000e+01 5.527e-04
306 531 1.306e-05 -2.684e-11 3.260e-04 3.805e-05 7.289e-06 1.000e+01 5.527e-04
307 532 1.306e-05 5.295e-09 8.352e-05 2.447e-06 7.170e-06 1.000e+01 5.527e-04
308 533 1.306e-05 2.180e-10 3.266e-04 3.541e-05 7.297e-06 1.000e+01 5.527e-04
309 534 1.305e-05 5.018e-09 8.338e-05 2.265e-06 7.178e-06 1.000e+01 5.527e-04
310 535 1.305e-05 2.350e-10 3.244e-04 3.770e-05 7.314e-06 1.000e+01 5.527e-04
311 536 1.305e-05 4.812e-09 8.298e-05 2.162e-06 7.195e-06 1.000e+01 5.527e-04
312 537 1.305e-05 1.566e-10 3.211e-04 3.962e-05 7.324e-06 1.000e+01 5.527e-04
313 538 1.304e-05 4.631e-09 8.250e-05 2.353e-06 7.187e-06 1.000e+01 5.527e-04
314 540 1.304e-05 9.167e-10 8.172e-05 2.473e-06 7.177e-06 1.000e+01 5.527e-04
315 542 1.304e-05 8.952e-10 8.122e-05 2.555e-06 7.173e-06 1.000e+01 5.527e-04
316 544 1.304e-05 8.776e-10 8.076e-05 2.613e-06 7.166e-06 1.000e+01 5.527e-04
317 546 1.304e-05 8.603e-10 8.034e-05 2.662e-06 7.157e-06 1.000e+01 5.527e-04
318 548 1.304e-05 8.415e-10 8.007e-05 2.696e-06 7.155e-06 1.000e+01 5.527e-04
319 550 1.304e-05 8.265e-10 7.986e-05 2.720e-06 7.153e-06 1.000e+01 5.527e-04
320 552 1.304e-05 8.111e-10 7.975e-05 2.738e-06 7.154e-06 1.000e+01 5.527e-04
321 554 1.304e-05 7.969e-10 7.957e-05 2.749e-06 7.152e-06 1.000e+01 5.527e-04
322 556 1.304e-05 7.821e-10 7.940e-05 2.755e-06 7.148e-06 1.000e+01 5.527e-04
323 558 1.303e-05 7.668e-10 7.931e-05 2.762e-06 7.144e-06 1.000e+01 5.527e-04
324 560 1.303e-05 7.507e-10 7.918e-05 2.765e-06 7.144e-06 1.000e+01 5.527e-04
325 562 1.303e-05 7.345e-10 7.918e-05 2.769e-06 7.150e-06 1.000e+01 5.527e-04
326 564 1.303e-05 7.233e-10 7.904e-05 2.749e-06 7.152e-06 1.000e+01 5.527e-04
327 566 1.303e-05 7.006e-10 7.888e-05 2.718e-06 7.167e-06 1.000e+01 5.527e-04
328 568 1.303e-05 6.793e-10 7.849e-05 2.690e-06 7.188e-06 1.000e+01 5.527e-04
329 570 1.303e-05 6.623e-10 7.816e-05 2.667e-06 7.208e-06 1.000e+01 5.527e-04
330 572 1.303e-05 6.439e-10 7.782e-05 2.639e-06 7.229e-06 1.000e+01 5.527e-04
331 574 1.303e-05 6.239e-10 7.733e-05 2.658e-06 7.253e-06 1.000e+01 5.527e-04
332 576 1.303e-05 6.117e-10 7.697e-05 2.680e-06 7.275e-06 1.000e+01 5.527e-04
333 578 1.303e-05 5.986e-10 7.677e-05 2.700e-06 7.301e-06 1.000e+01 5.527e-04
334 580 1.303e-05 5.857e-10 7.644e-05 2.712e-06 7.326e-06 1.000e+01 5.527e-04
335 582 1.303e-05 5.708e-10 7.609e-05 2.710e-06 7.356e-06 1.000e+01 5.527e-04
336 584 1.303e-05 5.526e-10 7.557e-05 2.701e-06 7.389e-06 1.000e+01 5.527e-04
337 586 1.303e-05 5.353e-10 7.497e-05 2.694e-06 7.424e-06 1.000e+01 5.527e-04
338 588 1.302e-05 5.182e-10 7.427e-05 2.693e-06 7.458e-06 1.000e+01 5.527e-04
339 590 1.302e-05 4.954e-10 7.346e-05 2.690e-06 7.497e-06 1.000e+01 5.527e-04
340 592 1.302e-05 4.749e-10 7.252e-05 2.702e-06 7.539e-06 1.000e+01 5.527e-04
341 594 1.302e-05 4.557e-10 7.160e-05 2.706e-06 7.580e-06 1.000e+01 5.527e-04
342 596 1.302e-05 4.344e-10 7.054e-05 2.719e-06 7.622e-06 1.000e+01 5.527e-04
343 598 1.302e-05 4.127e-10 6.930e-05 2.747e-06 7.664e-06 1.000e+01 5.527e-04
344 600 1.302e-05 3.932e-10 6.816e-05 2.760e-06 7.706e-06 1.000e+01 5.527e-04
345 602 1.302e-05 3.741e-10 6.705e-05 2.756e-06 7.745e-06 1.000e+01 5.527e-04
346 604 1.302e-05 3.560e-10 6.589e-05 2.739e-06 7.782e-06 1.000e+01 5.527e-04
347 606 1.302e-05 3.368e-10 6.470e-05 2.706e-06 7.819e-06 1.000e+01 5.527e-04
348 608 1.302e-05 3.186e-10 6.351e-05 2.660e-06 7.855e-06 1.000e+01 5.527e-04
349 610 1.302e-05 3.016e-10 6.232e-05 2.600e-06 7.891e-06 1.000e+01 5.527e-04
350 612 1.302e-05 2.855e-10 6.117e-05 2.531e-06 7.927e-06 1.000e+01 5.527e-04
351 614 1.302e-05 2.708e-10 6.012e-05 2.458e-06 7.962e-06 1.000e+01 5.527e-04
352 616 1.302e-05 2.571e-10 5.905e-05 2.411e-06 7.996e-06 1.000e+01 5.527e-04
353 618 1.302e-05 2.466e-10 5.807e-05 2.368e-06 8.024e-06 1.000e+01 5.527e-04
354 620 1.302e-05 2.357e-10 5.721e-05 2.349e-06 8.052e-06 1.000e+01 5.527e-04
355 622 1.302e-05 2.250e-10 5.616e-05 2.296e-06 8.075e-06 1.000e+01 5.527e-04
356 624 1.302e-05 2.147e-10 5.484e-05 2.184e-06 8.093e-06 1.000e+01 5.527e-04
357 626 1.302e-05 2.036e-10 5.360e-05 2.065e-06 8.111e-06 1.000e+01 5.527e-04
358 628 1.302e-05 1.965e-10 5.288e-05 2.039e-06 8.123e-06 1.000e+01 5.527e-04
359 630 1.302e-05 1.884e-10 5.218e-05 2.008e-06 8.135e-06 1.000e+01 5.527e-04
360 632 1.302e-05 1.806e-10 5.150e-05 1.962e-06 8.145e-06 1.000e+01 5.527e-04
361 634 1.302e-05 1.727e-10 5.086e-05 1.901e-06 8.156e-06 1.000e+01 5.527e-04
362 636 1.302e-05 1.657e-10 5.038e-05 1.844e-06 8.166e-06 1.000e+01 5.527e-04
363 638 1.302e-05 1.570e-10 5.021e-05 1.854e-06 8.184e-06 1.000e+01 5.527e-04
364 640 1.302e-05 1.534e-10 5.036e-05 1.942e-06 8.202e-06 1.000e+01 5.527e-04
365 642 1.302e-05 1.503e-10 5.049e-05 2.028e-06 8.217e-06 1.000e+01 5.527e-04
366 644 1.302e-05 1.474e-10 5.066e-05 2.114e-06 8.233e-06 1.000e+01 5.527e-04
367 646 1.302e-05 1.450e-10 5.097e-05 2.219e-06 8.248e-06 1.000e+01 5.527e-04
368 648 1.302e-05 1.429e-10 5.144e-05 2.344e-06 8.264e-06 1.000e+01 5.527e-04
369 650 1.302e-05 1.413e-10 5.184e-05 2.450e-06 8.281e-06 1.000e+01 5.527e-04
370 652 1.302e-05 1.399e-10 5.218e-05 2.538e-06 8.297e-06 1.000e+01 5.527e-04
371 654 1.302e-05 1.394e-10 5.249e-05 2.614e-06 8.314e-06 1.000e+01 5.527e-04
372 656 1.302e-05 1.383e-10 5.303e-05 2.743e-06 8.332e-06 1.000e+01 5.527e-04
373 658 1.302e-05 1.384e-10 5.290e-05 2.743e-06 8.345e-06 1.000e+01 5.527e-04
374 660 1.302e-05 1.377e-10 5.257e-05 2.686e-06 8.356e-06 1.000e+01 5.527e-04
375 662 1.302e-05 1.365e-10 5.241e-05 2.646e-06 8.364e-06 1.000e+01 5.527e-04
376 664 1.302e-05 1.346e-10 5.239e-05 2.635e-06 8.371e-06 1.000e+01 5.527e-04
377 666 1.302e-05 1.330e-10 5.244e-05 2.632e-06 8.379e-06 1.000e+01 5.527e-04
378 668 1.302e-05 1.316e-10 5.255e-05 2.642e-06 8.386e-06 1.000e+01 5.527e-04
379 670 1.302e-05 1.301e-10 5.270e-05 2.660e-06 8.393e-06 1.000e+01 5.527e-04
Optimization terminated successfully.
`ftol` condition satisfied.
Current function value: 1.302e-05
Constraint violation: 8.393e-06
Total delta_x: 9.170e-02
Iterations: 379
Function evaluations: 670
Jacobian evaluations: 382
Timer: Solution time = 2.38 min
Timer: Avg time per step = 375 ms
==============================================================================================================
Start --> End
Total (sum of squares): 6.632e+01 --> 1.302e-05,
Maximum absolute QFM surface normal field error: 3.970e-02 --> 5.304e-05 (T m^2)
Minimum absolute QFM surface normal field error: 9.255e-18 --> 1.113e-17 (T m^2)
Average absolute QFM surface normal field error: 1.676e-02 --> 4.210e-06 (T m^2)
Maximum absolute QFM surface normal field error: 5.672e-01 --> 7.577e-04 (normalized)
Minimum absolute QFM surface normal field error: 1.322e-16 --> 1.590e-16 (normalized)
Average absolute QFM surface normal field error: 2.394e-01 --> 6.014e-05 (normalized)
Maximum Toroidal Flux: -2.117e-02 --> -3.501e-02 (Wb)
Minimum Toroidal Flux: -2.117e-02 --> -3.501e-02 (Wb)
Average Toroidal Flux: -2.117e-02 --> -3.501e-02 (Wb)
Maximum Toroidal Flux: -2.117e-02 --> -3.501e-02 (normalized)
Minimum Toroidal Flux: -2.117e-02 --> -3.501e-02 (normalized)
Average Toroidal Flux: -2.117e-02 --> -3.501e-02 (normalized)
==============================================================================================================

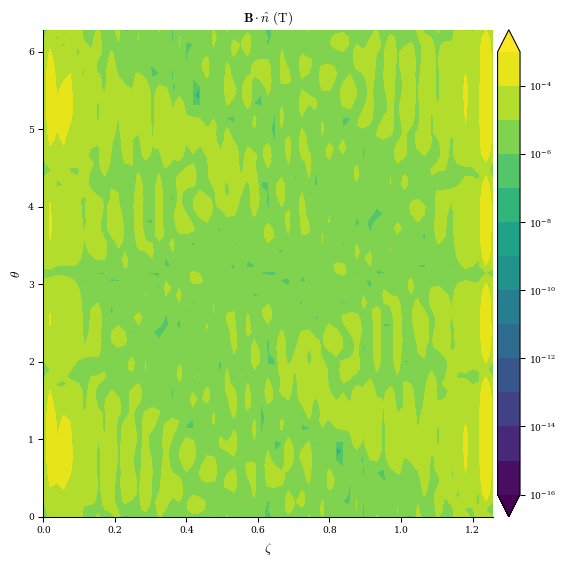

We can see that after the optimization, the normal field error is quite small
[7]:
plot_2d(qfm_surf, "B*n", field=field, cmap="viridis", log=True);

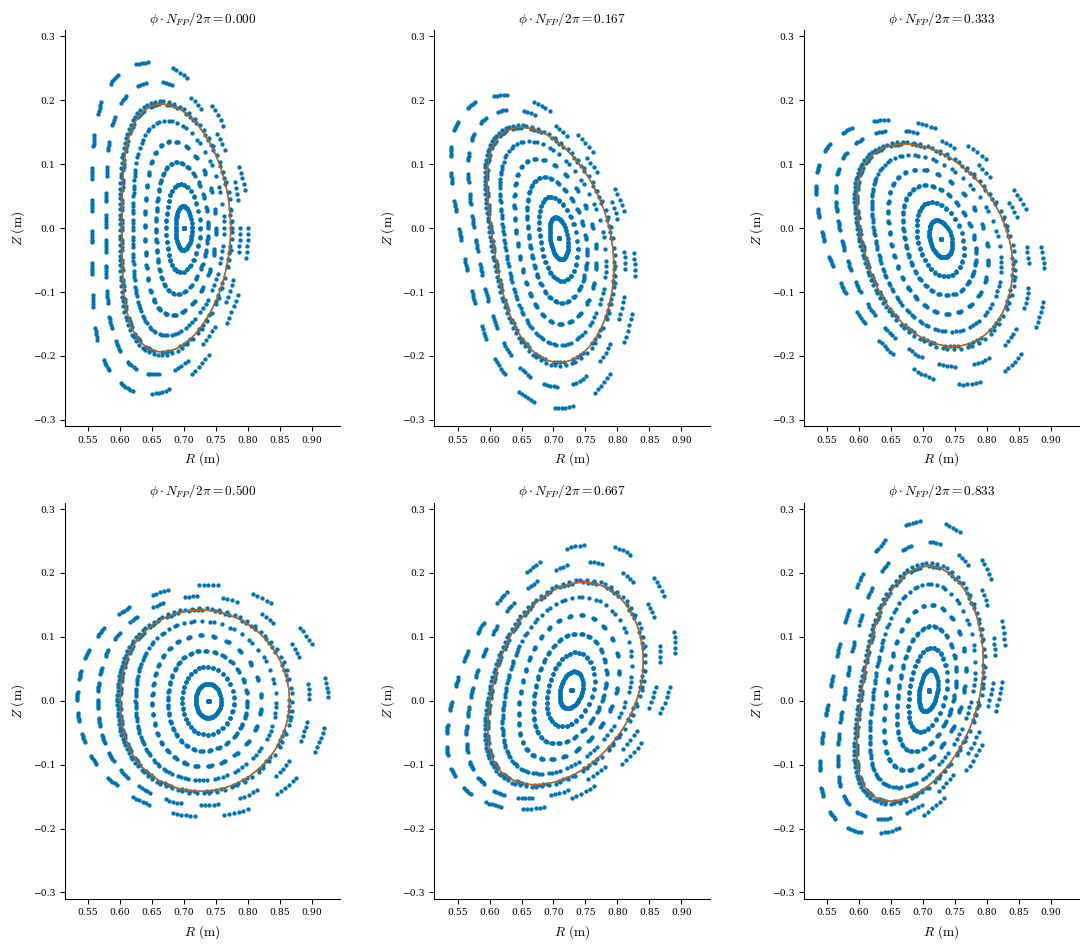

We also see that the optimized surface is now a good approximation of a flux surface in this vacuum field
[8]:
data = qfm_surf.compute(["R", "Z"], grid=LinearGrid(rho=1.0, theta=0, zeta=0))
fig, ax = plot_surfaces(qfm_surf, rho=1.0, theta=0)
poincare_plot(
field, R0=np.append(data["R"], np.linspace(0.7, 0.8, 9)), Z0=np.zeros(10), ax=ax
);

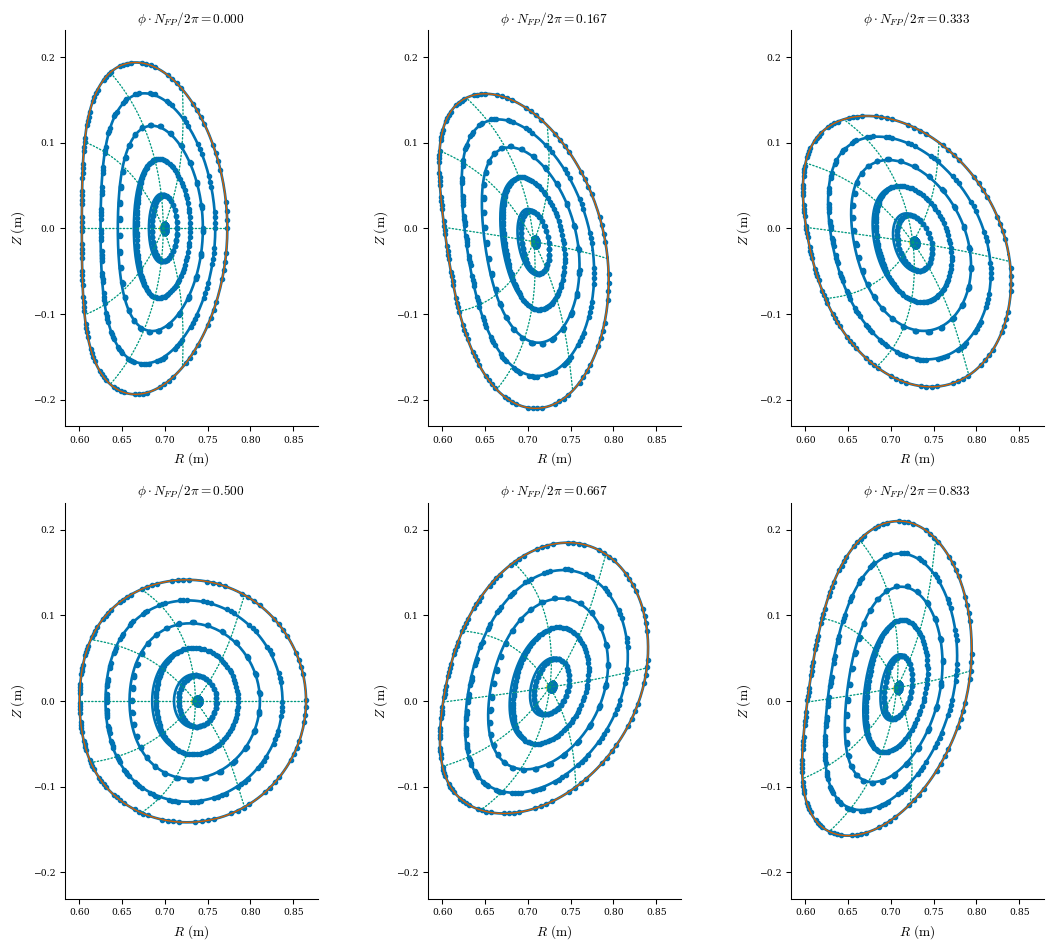

We can use this QFM surface as the surface for a fixed-boundary DESC equilibrium solve, to find the equilibrium field which matches the vacuum field inside this surface. (Alternatively, one could also perform a free-boundary solve, though we know the surface should not change much from this QFM surface)
[9]:
from desc.equilibrium import Equilibrium
eq = Equilibrium(surface=qfm_surf, Psi=-0.035, L=8, M=6, N=6)
eq.solve(verbose=3, ftol=1e-8);
Building objective: force
Precomputing transforms
Timer: Precomputing transforms = 785 ms
Timer: Objective build = 1.15 sec
Building objective: lcfs R
Building objective: lcfs Z
Building objective: fixed Psi
Building objective: fixed pressure
Building objective: fixed current
Building objective: fixed sheet current
Building objective: self_consistency R
Building objective: self_consistency Z
Building objective: lambda gauge
Building objective: axis R self consistency
Building objective: axis Z self consistency
Timer: Objective build = 627 ms
Timer: Linear constraint projection build = 3.72 sec
Number of parameters: 628
Number of objectives: 3250
Timer: Initializing the optimization = 5.54 sec
Starting optimization
Using method: lsq-exact
Iteration Total nfev Cost Cost reduction Step norm Optimality
0 1 3.077e-01 5.878e-01
1 2 1.529e-02 2.925e-01 3.453e-01 4.716e-02
2 3 2.486e-04 1.504e-02 8.733e-02 4.858e-03
3 4 1.790e-05 2.307e-04 4.783e-02 1.724e-03
4 6 1.069e-06 1.683e-05 2.236e-02 2.675e-04
5 8 1.688e-07 9.002e-07 1.693e-02 1.283e-04
6 10 8.039e-08 8.838e-08 8.362e-03 4.745e-05
7 12 7.182e-08 8.564e-09 4.095e-03 1.219e-05
8 14 7.057e-08 1.247e-09 2.083e-03 2.967e-06
9 15 6.924e-08 1.335e-09 4.119e-03 9.143e-06
10 16 6.911e-08 1.321e-10 7.968e-03 2.805e-05
11 17 6.546e-08 3.649e-09 1.919e-03 1.495e-06
12 18 6.433e-08 1.132e-09 3.774e-03 4.709e-06
13 19 6.351e-08 8.175e-10 7.287e-03 1.460e-05
14 20 6.125e-08 2.261e-09 7.058e-03 1.307e-05
15 21 5.933e-08 1.913e-09 6.925e-03 1.187e-05
16 22 5.765e-08 1.681e-09 6.854e-03 1.091e-05
17 23 5.616e-08 1.491e-09 6.833e-03 1.075e-05
18 24 5.484e-08 1.322e-09 6.856e-03 1.091e-05
19 25 5.367e-08 1.168e-09 6.902e-03 1.188e-05
20 26 5.265e-08 1.023e-09 6.932e-03 1.299e-05
21 27 5.175e-08 9.001e-10 6.927e-03 1.417e-05
22 28 5.095e-08 8.040e-10 6.929e-03 1.487e-05
23 29 5.024e-08 7.080e-10 6.989e-03 1.418e-05
24 30 4.965e-08 5.915e-10 7.106e-03 1.168e-05
25 31 4.918e-08 4.666e-10 7.230e-03 7.967e-06
26 33 4.890e-08 2.811e-10 3.646e-03 1.824e-06
27 34 4.868e-08 2.185e-10 7.366e-03 6.098e-06
28 36 4.851e-08 1.745e-10 3.706e-03 1.335e-06
29 37 4.834e-08 1.676e-10 7.440e-03 4.845e-06
30 39 4.820e-08 1.382e-10 3.731e-03 1.041e-06
31 40 4.810e-08 1.035e-10 7.477e-03 4.745e-06
32 41 4.797e-08 1.232e-10 7.457e-03 4.953e-06
33 42 4.789e-08 7.834e-11 7.499e-03 5.219e-06
34 43 4.785e-08 4.797e-11 7.500e-03 5.338e-06
35 44 4.781e-08 3.369e-11 6.864e-03 4.681e-06
36 45 4.775e-08 6.522e-11 6.667e-04 1.524e-07
37 46 4.775e-08 7.048e-13 9.092e-04 1.085e-07
38 47 4.775e-08 2.572e-13 1.389e-04 1.616e-08
39 48 4.775e-08 6.419e-14 2.677e-04 9.380e-09
`gtol` condition satisfied.
Current function value: 4.775e-08
Total delta_x: 4.078e-01
Iterations: 39
Function evaluations: 48
Jacobian evaluations: 40
Timer: Solution time = 46.2 sec
Timer: Avg time per step = 1.15 sec
==============================================================================================================
Start --> End
Total (sum of squares): 3.077e-01 --> 4.775e-08,
Maximum absolute Force error: 7.819e+04 --> 5.939e+01 (N)
Minimum absolute Force error: 1.524e+00 --> 1.821e-04 (N)
Average absolute Force error: 4.272e+03 --> 1.594e+00 (N)
Maximum absolute Force error: 1.824e-01 --> 1.385e-04 (normalized)
Minimum absolute Force error: 3.554e-06 --> 4.247e-10 (normalized)
Average absolute Force error: 9.964e-03 --> 3.719e-06 (normalized)
R boundary error: 0.000e+00 --> 1.431e-17 (m)
Z boundary error: 0.000e+00 --> 2.926e-19 (m)
Fixed Psi error: 0.000e+00 --> 0.000e+00 (Wb)
Fixed pressure profile error: 0.000e+00 --> 0.000e+00 (Pa)
Fixed current profile error: 0.000e+00 --> 0.000e+00 (A)
Fixed sheet current error: 0.000e+00 --> 0.000e+00 (~)
==============================================================================================================
Finally, we compare the solve equilibrium’s flux surfaces with the vacuum field Poincare plot and confirm that indeed, the equilibrium matches the vacuum field as expected.
[10]:
grid = LinearGrid(L=5)
data = eq.compute(["R", "Z"], grid=grid)
fig, ax = plot_surfaces(eq, rho=grid.nodes[:, 0], rho_lw=2)
poincare_plot(field, R0=data["R"], Z0=data["Z"], ax=ax, NFP=eq.NFP, size=10);
